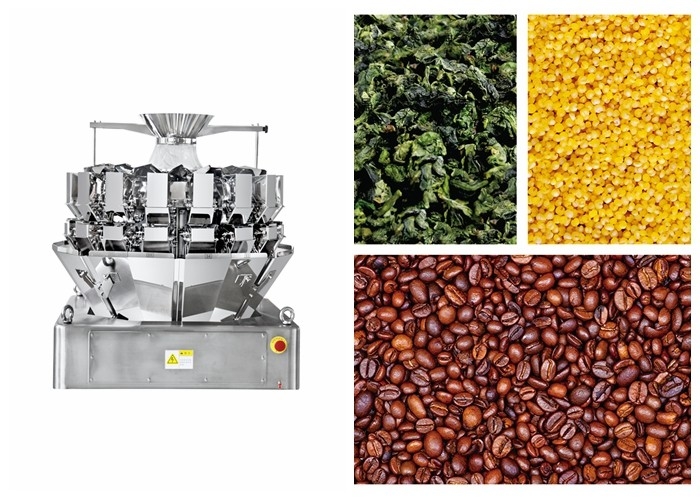

16 Head Mini Combination 200g Packing Machine For Coffee Bean
Product description
It is made of a 304 stainless steel frame and food class buckets. High-quality sensors and integrated modular design, make debugging more convenient, more stable performance, more precision guarantee; collocation parameters and language touch man-machine interface, selection, and parameters in different countries or regions of the flexible setting, more convenient operation, debugging interface fault intelligent visual alarm and self-learning Intelligent control functions.
Product parameters
| Model |
JW-A16 |
| Identify Code |
A16-2-7 |
| Weighing Range |
2-200g |
| Accuracy |
x(0.5) |
| Max Speed |
180P/M |
| Hopper Volume |
0.5L |
| Control Panel |
10.1” Touch Screen |
| Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
| Driving System |
Step Motor |
| Power Requirement |
220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) |
1250(L)x1070(W)x960(H) |
| Gross Weight |
300kg |
Product features
1. Double-layer discharge chute with double high-speed timing hoppers feed packaging machines in turn, surmount the speed problems of discharging chute feed time.
2. Arc-shaped machine body with large O treatment improves the stability and appearance
3. Uniform design standards, and mold processing, contribute to better interchangeability for spare parts.
4. Stable actuator design reduces mechanical vibration and improves the load cell value accuracy.
5. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.
6. One can be connected with one or two packaging machines for maximum speed.
7. Complete stainless steel housing actuator for hygiene requests.
Product advantages
Having a high-quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.
